MB100 Nano 15A ESC (Brushed)
- Product SKU: INJMB100-NANO
- Category: Electronics, ESC
- Order within

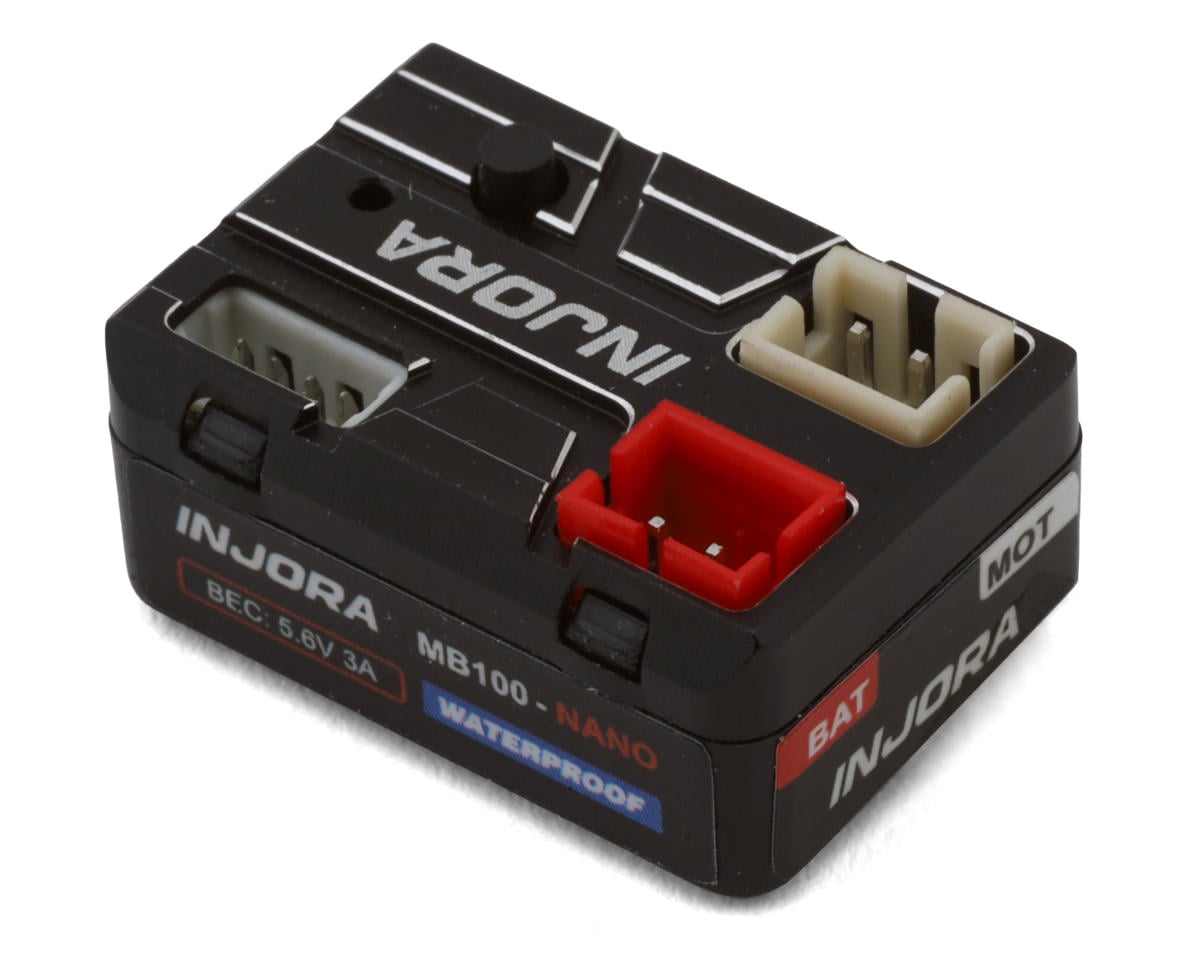

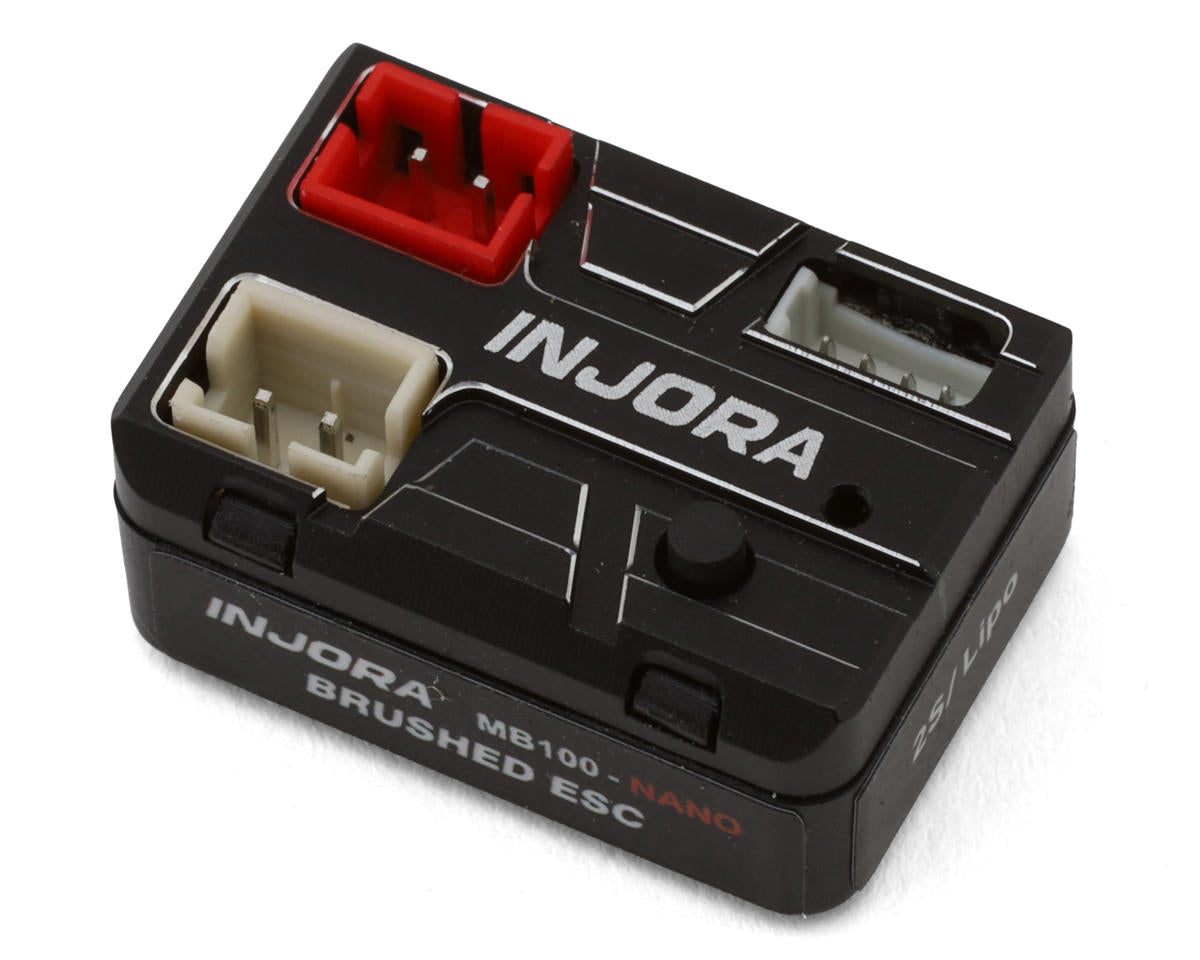

Injora MB100 Nano 15A Waterproof Brushed ESC
INJMB100-NANO

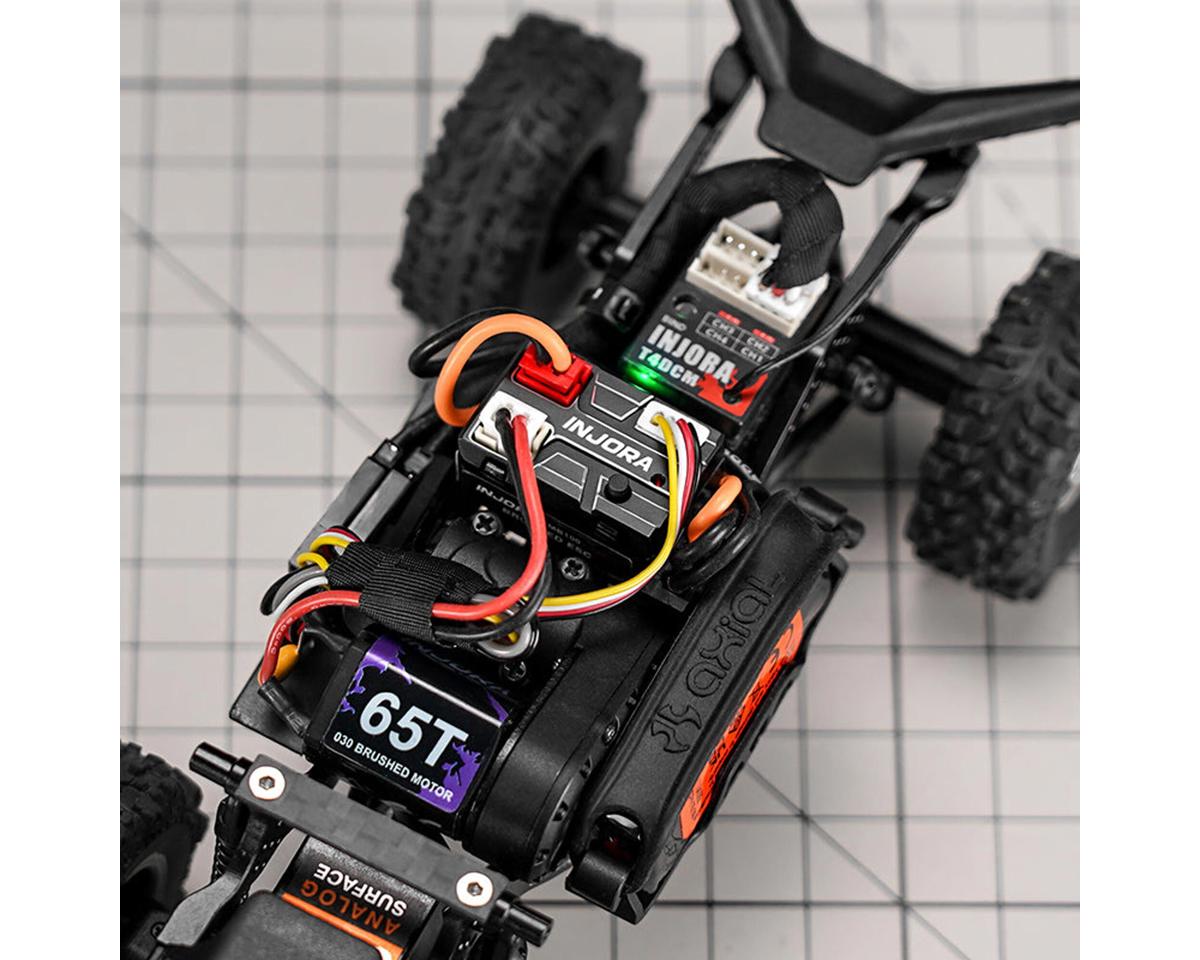

Upgrade your micro crawler with the Injora MB100 Nano 15A Waterproof Brushed ESC. Featuring an ultra-compact 5.2g design, IP67 waterproof protection, smooth linear throttle control, and compatibility with 2S LiPo batteries, it delivers dependable power and precise control for 1/32, 1/30, and 1/24 scale crawling adventures.
Compact Power
The Injora MB100 Nano Waterproof Brushed ESC delivers reliable power management in a compact package measuring just 23 × 16.5 × 10.3mm and weighing only 5.2g. Supporting 2S LiPo batteries and 030, 050, 130, and 180 brushed motors with a PH2.0 connector, it offers a practical solution for smaller crawlers where space and weight matter.
Precise Control
An optimized throttle control algorithm delivers smooth, linear response for more predictable driving over technical terrain. The AUX mapping function allows drag brake force to be adjusted through a compatible CH5 channel, while low-battery, overheating, overvoltage, and throttle signal loss protections help keep your electronics and crawler operating safely.
Features:

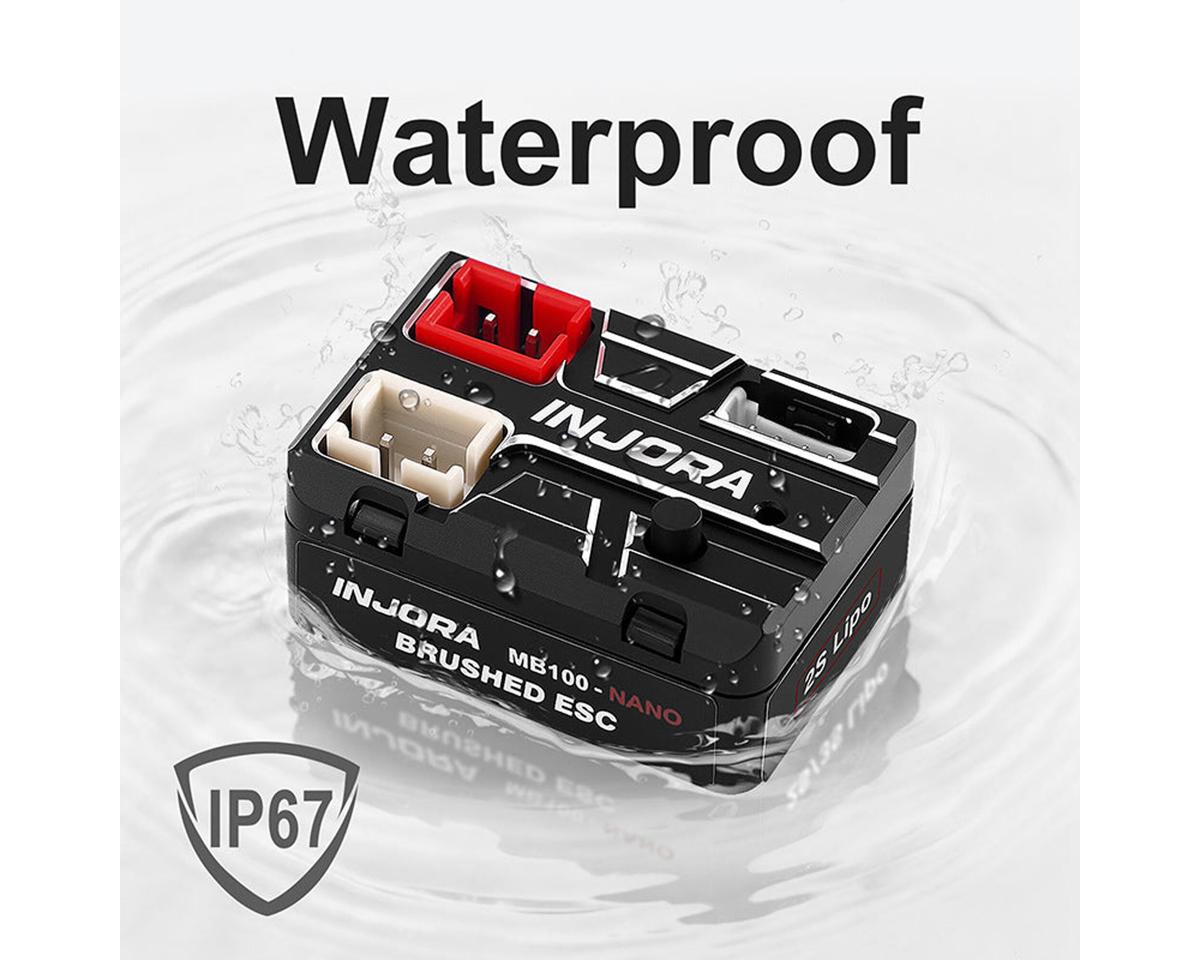

- IP67 waterproof design for varied weather conditions
- Linear throttle control delivers smooth, consistent response
- Compact 5.2g design fits micro crawlers
- Compatible with 2S LiPo batteries

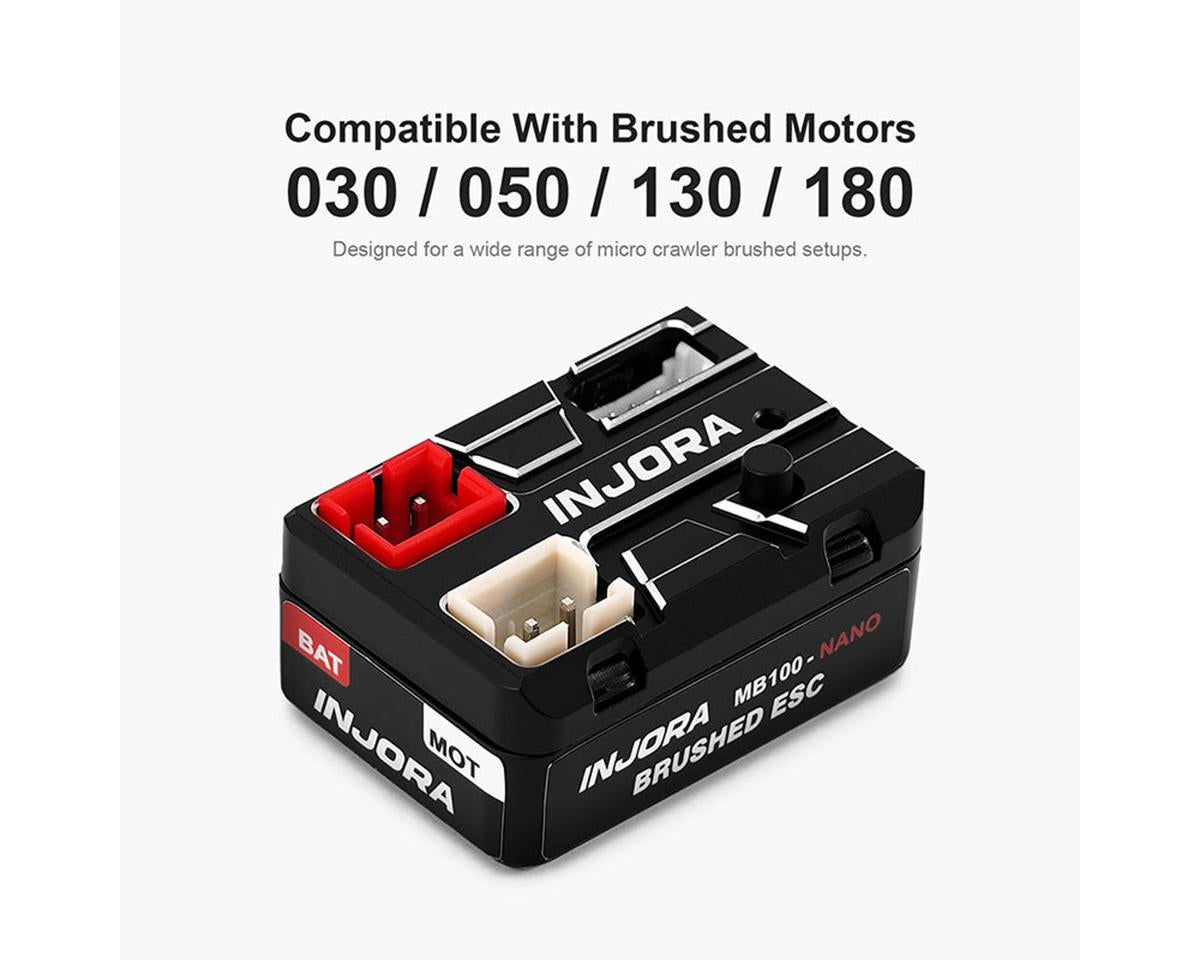

- Supports 030, 050, 130, and 180 brushed motors
- Delivers 15A continuous and 40A peak current
- AUX mapping allows drag brake adjustment through CH5
- Provides a 5.6V, 3A BEC output
- Protects against low battery, overheating, and overvoltage
- Throttle signal loss protection helps prevent runaway conditions
Includes:
-
(1) MB100 Nano Waterproof Brushed ESC
Specifications:
|
Suggested Application |
Micro Rock Crawler |
|---|---|
|
Main Applicable Scales |
1/32, 1/30, 1/24 |
|
Type |
Brushed |
|
Input Voltage |
2S LiPo |
|
Continuous Current |
15A |
|
Peak Current |
40A |
|
Motor Support |
030, 050, 130, 180 Brushed Motors |
|
BEC Voltage |
5.6V |
|
BEC Continuous Current |
3A |
|
Motor Connector |
PH2.0 |
|
Size |
23 × 16.5 × 10.3mm |
|
Weight |
5.2g |
*Tech Note: Not compatible with the stock SCX24 / SCX30 radio systems. Requires a new transmitter and receiver
*Tech Note: To adjust drag brake force through the AUX mapping function.
*Tech Note: Not compatible with the stock SCX24 / SCX30 radio systems. Requires a new transmitter and receiver
*Tech Note: 2S LiPo ONLY! Using 3S may trigger the voltage protection function and cause automatic shutdown.
