Motor Heat Sink w/Fan (Blue)

Available: In Stock
$12.88
  • Order within

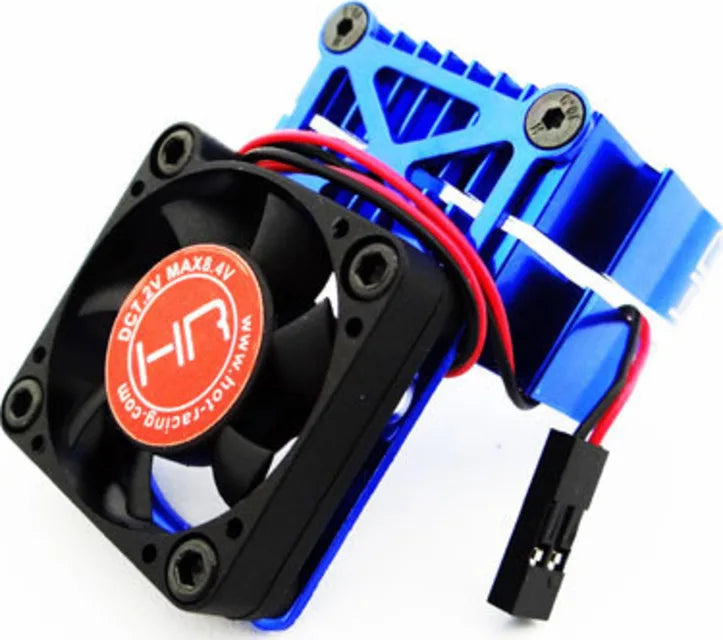

Clip-On Two-Piece Motor Heat Sink W/ Fan (Blue)

MH550TE06

Hot Racing universal clip on motor heat sink and fan for use on 540 and 550 size motors. Versatile two-piece heat sink clip provides 8 different width adjustments.

FEATURES:

- Keeps the motor running cooler
- Aluminum construction
- Clip on heat sink attaches to 540 and 550 size motors with a 36mm can diameter
- Two-piece heat sink clip provides 8 different width adjustment options (20-40mm). M3 screws and nuts will be required for some configurations.
- Blue anodized
- Laser etched Hot Racing insignia

YOU WILL RECEIVE:

- One (1) heat sink with cooling fan

REQUIREMENTS:

- Installation
- Some units may require assembly (1.5mm and 2mm hex wrench required)
- Electrical hook up with 7.2-8.4V MAX DC power source
- Plug requires soldering or connection to a receiver port plug

SPECIFICATIONS:

- Overall height: 39mm (1.54 inch)
- Fan size: 30x30x7.5mm
- Fan mounting hole pattern: 24mm square
- Input voltage: DC 7.2-8.4V MAX

COMMENTS:

- Some chassis do not have sufficient room for the fan assembly. Study the photos, and use your best judgement to determine fitment.
- Color variants include: MH550TE01 (Black), MH550TE02 (Red), MH550TE06 (Blue), MH550TE07 (Purple), MH550TE16 (Tamiya Blue)
- Replacement 30x30x7.5mm cooling fan is Hot Racing MH3030F
