Sheathed T-Style Plug (Female)
- Product SKU: PTK-5043
- Category: Wire & Connectors
- Order within
ProTek RC Sheathed T-Style Plug (2 Female)
PTK-5043

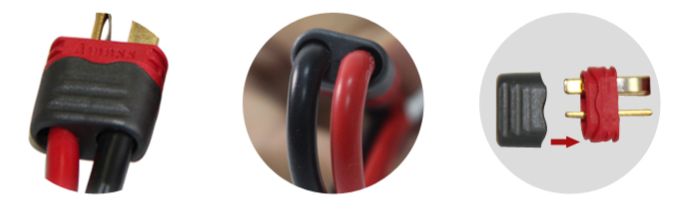

These ProTek R/C Sheathed T-Style Connectors are compatible with any standard generic T-Style plug, as well as Deans Ultra Plugs. These connectors feature a plastic protective sheath that snap onto the back of the connector concealing the solder joint.
Typical t-style plugs use shrink tubing which works fine, but provides a one-time solution. Using the sheath, you can snap it on or off to make any connector changes or modification, as well as create a sleek and professional look.
Package includes two female plugs and two protective sheaths.
Features:
- T-Style connectors
- 60A max current
- Sheathed backing
- Concealed solder joint
- Labeled polarity
- Professional looks
Specifications:
Rated Current： 36A
Max Current: 60A
Internal Resistance: 0.4mΩ
Net Weight (pair): 5.6g
Recommended Wire: 12AWG
Pulling Force: 25N
Recommended Use: 1000 times
Rated Temperature： -20°C - 120°C (-4°F - 248°F)
Material： Brass and gold plated
