Alum Modular Diff Carrier
- Product SKU: HRAAON11E02
- Category: Infraction Driveline, Infraction Hop-ups, Infraction Parts, Kraton Driveline, Kraton Hop-ups, Kraton Parts, Limitless Driveline, Limitless Hop-ups, Limitless Parts, Notorious Driveline, Notorious Hop-ups, Notorious Parts, Outcast Driveline, Outcast Hop-ups, Outcast Parts, Senton Driveline, Senton Hop-ups, Senton Parts, Talion Driveline, Talion Hop-ups, Talion Parts, Typhon Driveline, Typhon Hop-ups, Typhon Parts
- Order within

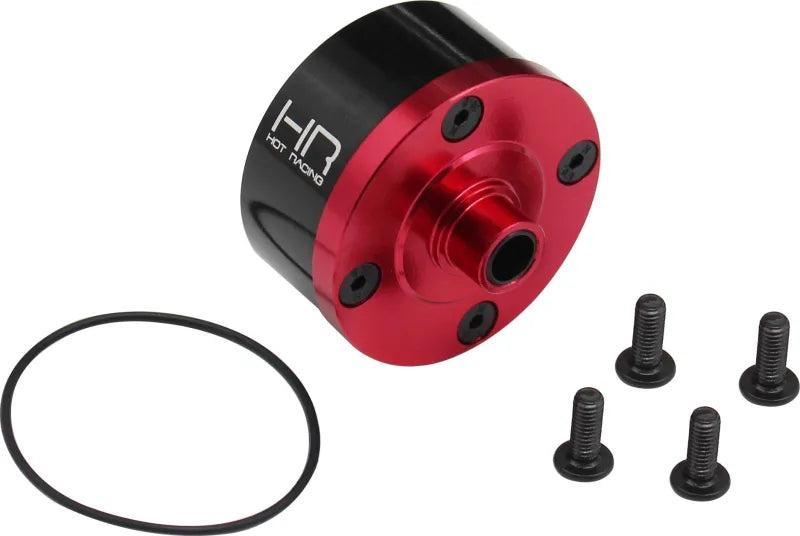

Modular aluminum differential carrier (case) 1/8 Arrma
AON11E02
Hot Racing aluminum differential carrier (case) for the 1/8 Arrma Kraton BLX, Notorious BLX, Outcast BLX, Senton BLX, Talion BLX, Typhon BLX and 1/7 LimitLess InFraction, Fits the front, center, or rear differential. See vehicle model compatibility in comments below.
FEATURES:
- CNC machined 6061 aluminum, anodized black
- CNC machined 6061 aluminum for light weight.
- Steel pinnon bushing for longevity.
- o-ring for a better seal and reusability.
- anodized black and Red.
- Fits the front, center, or rear
YOU WILL RECEIVE:
- One (1) differential carrier
- Four (4) ring gear screws
- Two (2) o-ring gasket (one alreay install. )
REQUIREMENTS:
- replacemnt Arrma AR310433
- Reused spider and output gears (from Arrma AR310433), gaskets and o-rings, and ring/pinion
- Recommended to use medium thread lock on screws
- Do not over tighten
- Use only silicone diff lube
COMMENTS:
- Replacment o-ring
- Replaces Arrma AR310433 or ARA220050 differential carrier
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode.
- InFraction ARA109001
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- LimitLess ARA109011 (there is no center differential in LimitLess)
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046
